Dual Zone Auto Fire Detection & Suppression System
Universal Dual Zone Auto Fire Detection & Suppression System provides independent protection for two separate fire-risk zones in large mining vehicles. It features two sensor cables and two DCP cylinders for maximum safety in high-risk heavy earth-moving machinery.
Engineered in Bangalore. Tested across 14 mining states. Backed by a 4-hour SLA service network.
Engineered for the toughest mining environments.

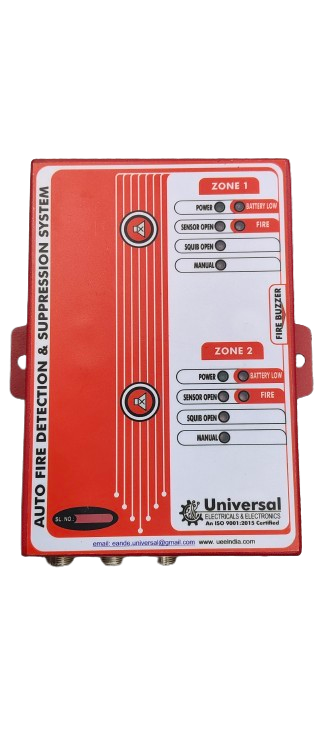

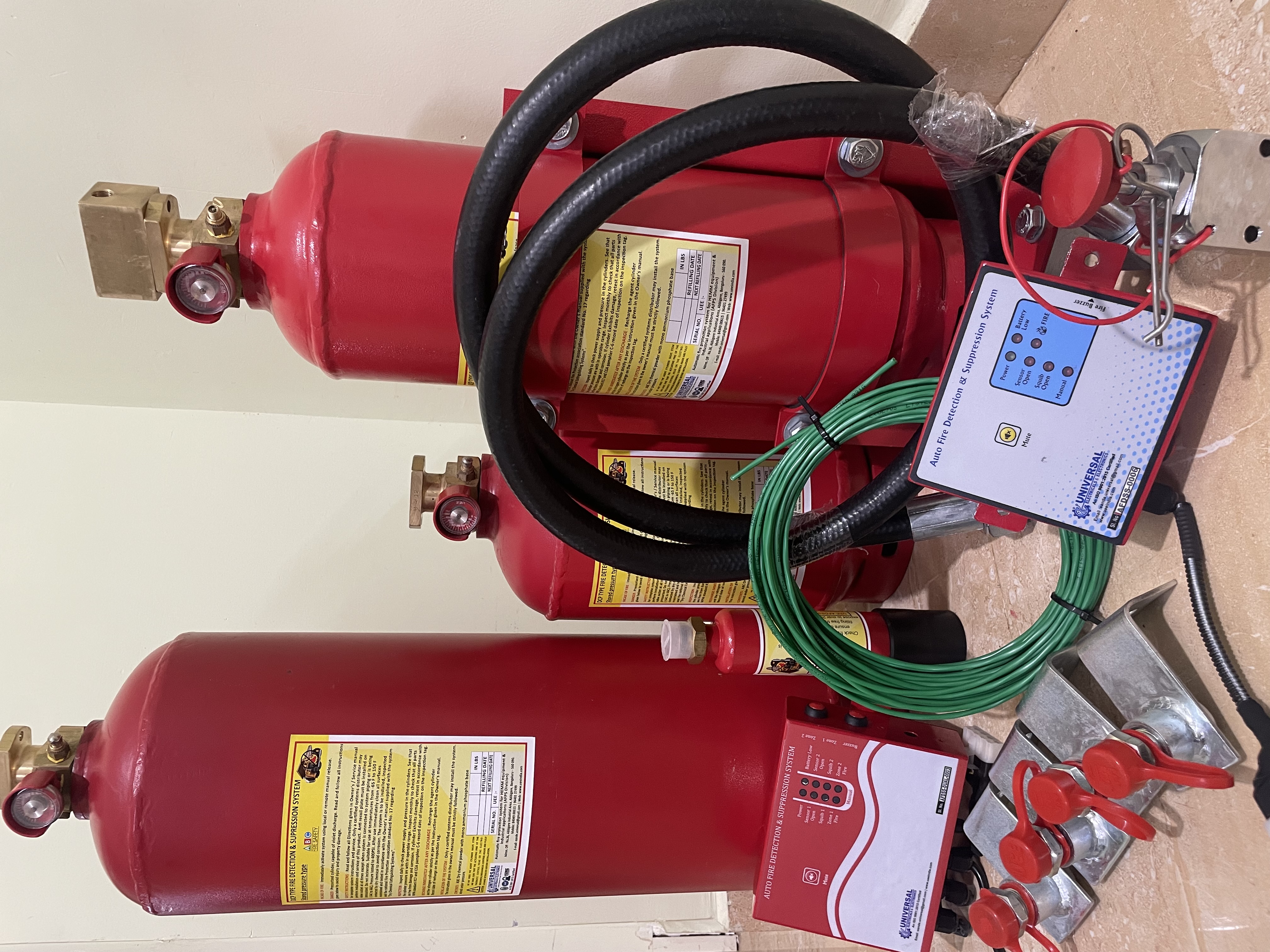

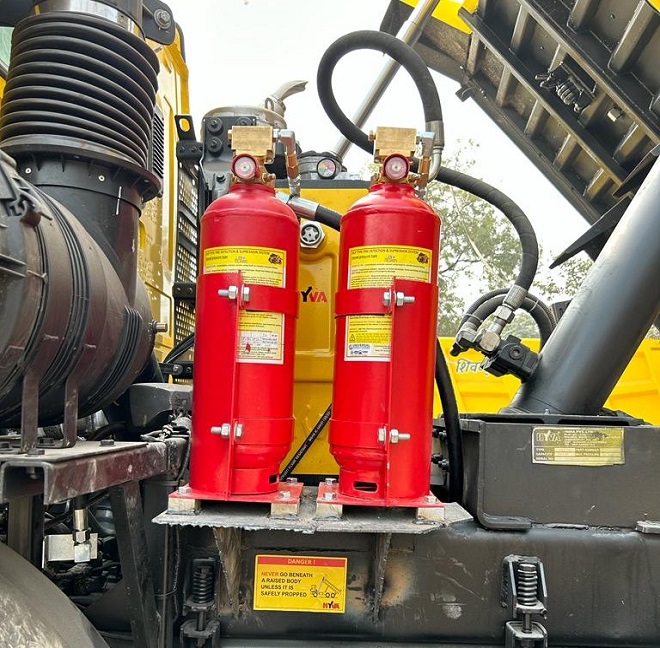

The Dual Zone AFDSS is the most advanced and recommended system for big mining machines like 100+ ton dumpers, excavators, and large wheel loaders that have multiple high-risk areas (Engine + Hydraulic + Transmission compartments). Each zone works independently: Two separate linear heat sensor cables Two independent squibs and Nitrogen cartridges Two DCP cylinders One Dual Zone Control Panel with individual LED indicators for each zone
Datasheet
| Variant | Dual Zone AFDSS |
| Control Panel | UEE-ZCU-0013 (Dual Zone) |
| Zones | 2 |
| Sensor Cables | 2 |
| Squibs N2 Cartridges | 2 |
| DCP Cylinders | 2 |
| Cylinder Options | 16 lbs, 25 lbs, 50 lbs |
| Nozzle Options | 4, 6, 8, 10, 12, 16, 18 |
| Detection Temperature | 180°C |
| Actuation Time | Within 5 Seconds (Per Zone) |
| Agent | ABC Dry Chemical Powder (IS 4308 / 14069) |
| Operating Voltage | 12-24V DC |
| Power Consumption (Standby) | 70mA |
| Operating Temperature | -30°C to +55°C |
| Fire Classes | A, B, C |
| 4 Nozzle Coverage Per Zone | 3600 Sq.in / 976 Cu.ft |
| 6 Nozzle Coverage Per Zone | 5400 Sq.in / 1464 Cu.ft |
| 8 Nozzle Coverage Per Zone | 7200 Sq.in / 1952 Cu.ft |
| Independent Zone Operation | Yes |
| Warranty | 1 Year |
| Brand | Universal Electricals & Electronics |
