Single Zone Auto Fire Detection & Suppression System
Universal Single Zone Auto Fire Detection & Suppression System is a compact, fully automatic fire protection solution for smaller mining vehicles and HEMM. It uses one linear heat sensor cable and one DCP cylinder for rapid detection at 180°C and automatic suppression using ABC Dry Chemical Powder.
Engineered in Bangalore. Tested across 14 mining states. Backed by a 4-hour SLA service network.
Engineered for the toughest mining environments.
The Single Zone AFDSS is designed for vehicles with one major fire-prone area (usually engine compartment). It continuously monitors temperature through a heat-sensitive linear sensor cable. Upon detecting fire at 180°C, the control panel activates the squib, which releases Nitrogen gas, opening the DCP cylinder valve. ABC powder is discharged through nozzles within seconds. It also includes a manual override actuator for emergency use. Ideal for wheel loaders, smaller dumpers, dozers, and other compact heavy equipment
Datasheet
| Variant | Single Zone AFDSS |

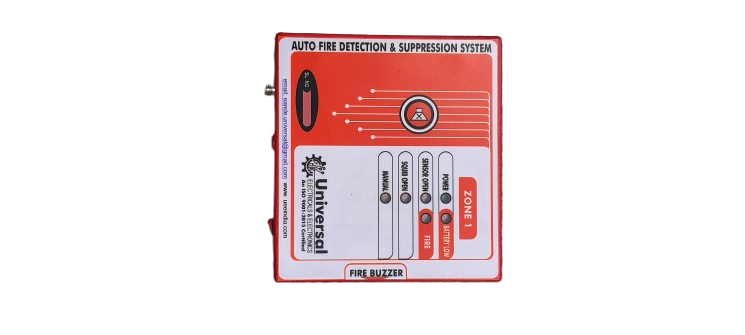

| Control Panel | UEE-CU-0013 (Single Zone) |
| Zones | 1 |
| Sensor Cables | 1 |
| Squibs N2 Cartridges | 1 |
| DCP Cylinders | 1 |
| Cylinder Options | 16 lbs, 25 lbs, 50 lbs |
| Nozzle Options | 4, 6, 8, 10, 12, 16, 18 |
| Detection Temperature | 180°C |
| Actuation Time | Within 5 Seconds |
| Agent | ABC Dry Chemical Powder (IS 4308 / 14069) |
| Operating Voltage | 12-24V DC |
| Power Consumption (Standby) | 70mA |
| Operating Temperature | -30°C to +55°C |
| Fire Classes | A, B, C |
| 4 Nozzle Coverage | 3600 Sq.in / 976 Cu.ft |
| 6 Nozzle Coverage | 5400 Sq.in / 1464 Cu.ft |
| 8 Nozzle Coverage | 7200 Sq.in / 1952 Cu.ft |
| Warranty | 1 Year |
| Brand | Universal Electricals & Electronics |
