AI-Based Blind Spot Detection Camera System
AI-Based Blind Spot Detection (BSD) Camera System for industrial vehicles (forklifts, etc.) featuring AI-powered active detection of pedestrians, cyclists & vehicles with customizable warning zones, 7" HD quad-view monitor, up to 4 HD IR cameras (day & color night vision), and optional flashing alarm. Ensures precise real-time safety alerts up to 12 meters
Engineered in Bangalore. Tested across 14 mining states. Backed by a 4-hour SLA service network.
Engineered for the toughest mining environments.

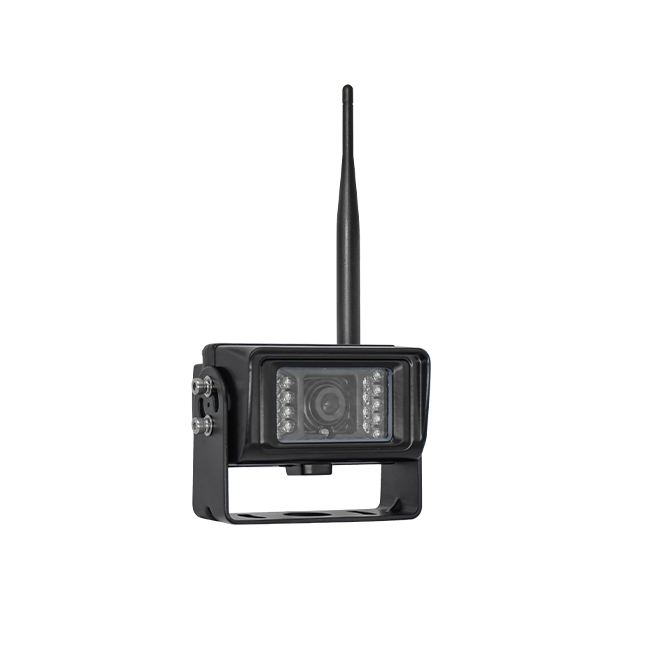

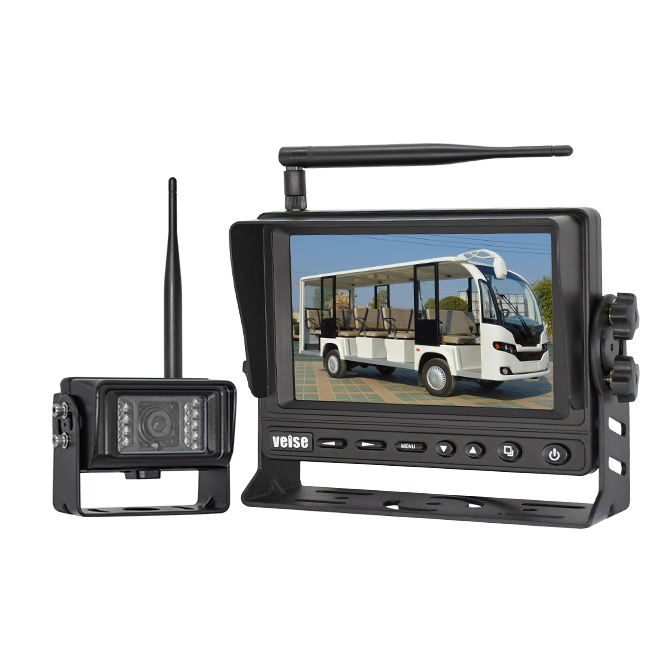

The AI BSD Camera Monitor System by Universal Electricals & Electronics is an advanced AI-powered safety solution designed for heavy vehicles like forklifts in warehouses, factories, and industrial environments. It provides active & precise blind spot detection using artificial intelligence to recognize pedestrians, cyclists, and vehicles in real time. Key features include: Settable Warning Zone – Adjustable detection area (wider/narrower, higher/shorter) via monitor menu for customized coverage. Customizable Algorithm – Choose to detect pedestrian & cyclist only, vehicle only, or both together. Multi-Channel Display – Supports 1-way, 2-way, 3-way, or 4-way split-screen view on a bright 7" HD Quad-View color monitor. HD IR Cameras – High-definition AHD cameras with clear circadian imaging and color night vision (works perfectly in day & complete darkness). Active Alerts – Yellow bounding boxes highlight detected objects on screen + optional flashing alarm for audio-visual warning. Robust & Reliable – Wide voltage (12-36V), low power consumption, wide temperature range (-20°C to +70°C), and high anti-vibration rating (ISO 16750-3 Max. 10G).
Datasheet

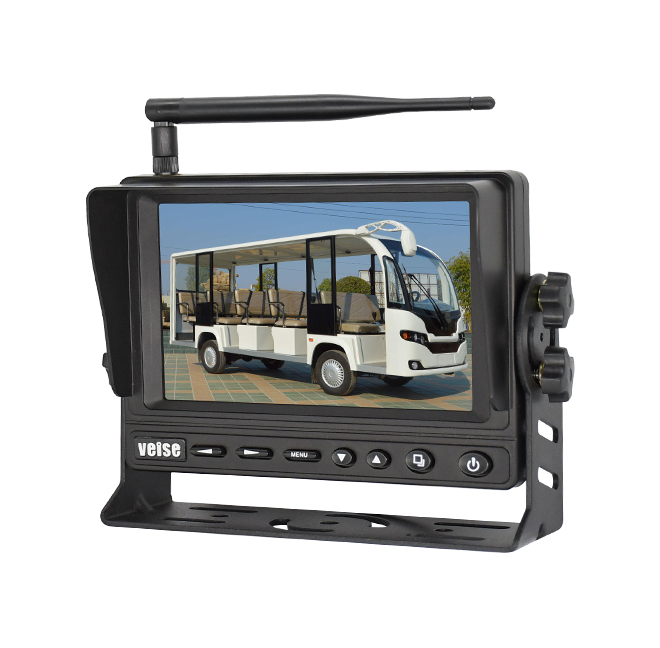

| Description | AI Active Detection 7 Inch HD Quad-View Color Monitor |
| Resolution | 1024 × 3(RGB) × 600 |
| Warning Distance | Up to 12 Meters |
| Maximum Number of Cameras | 4 |
| Audio Input | 0 |
| Audio Output Loudspeaker | 1W |
| Trigger | 4 |
| Brightness | 500 cd/m² |
| Contrast Ratio | 1000:1 |
| Operating Temperature | -20°C to +70°C, RH 90% |
| Viewing Angle Monitor | U:85°, D:85°, R/L:85°/85° |
| Mirror Function | Yes |
| Monitor Dimensions | 190 (W) × 160 (H) × 50 (T) mm |
| Split Screen | Yes |
| Voltage | 12V – 36V |
| Power Consumption | Less than 12W (Without Cameras) |
| Anti Vibration | ISO 16750-3 Max. 10G |
