PROXIMITYN WARNING SYSTEM
Proximity Warning System (PWS) – Advanced Collision Avoidance for Industrial Vehicles The Proximity Warning System (PWS) is a next-generation 77GHz Radar-Based Safety System designed for mining, construction, logistics, and heavy industrial applications. This system provides real-time obstacle detection, smart alerts, and compliance with DGMS Circular No. 6 of 2020 & IS: 16479 standards to prevent collisions and enhance operator awareness. Using state-of-the-art millimeter-wave (MMW) radar technology, PWS ensures high-precision detection of static and moving objects, including humans, vehicles, and infrastructure, even in low-visibility conditions such as dust, fog, and darkness. Revolutionizing Safety with 77GHz Microwave Radar Technology
Engineered in Bangalore. Tested across 14 mining states. Backed by a 4-hour SLA service network.
Engineered for the toughest mining environments.

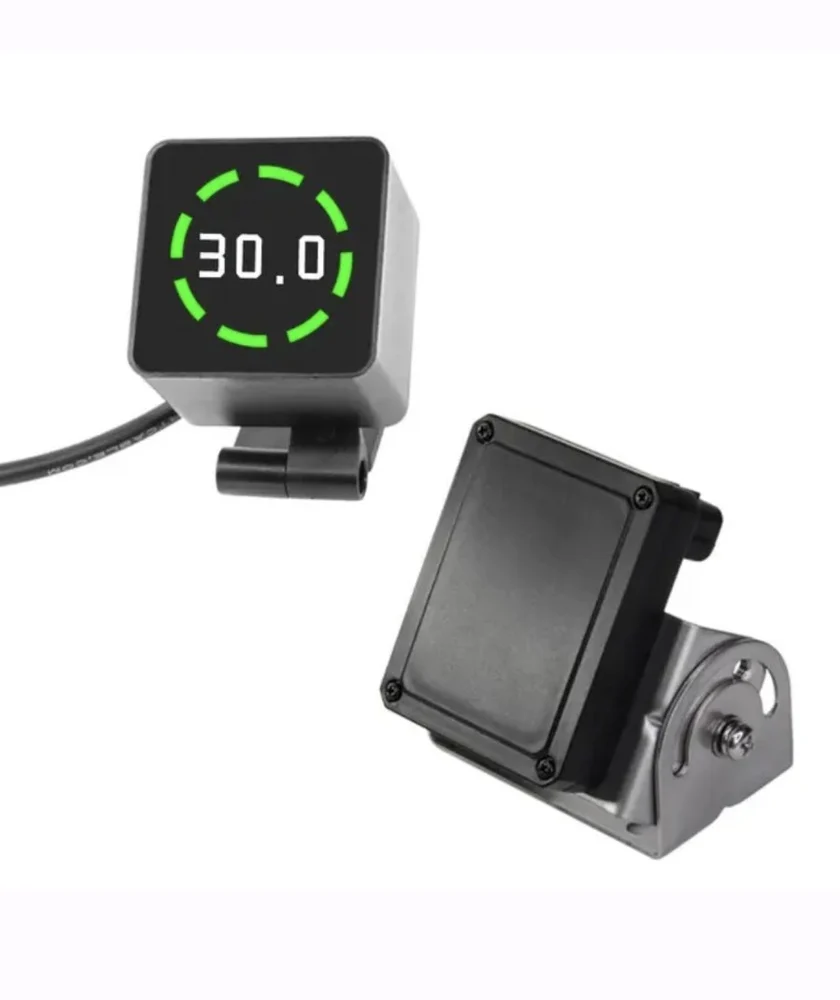

Next-Generation Radar Technology: Unlike optical-based sensors, PWS is unaffected by lighting conditions, providing superior reliability in low-visibility environments. The 77GHz microwave radar penetrates dust, fog, and harsh weather conditions, ensuring uninterrupted detection. Precision Object Detection & Warning System: Real-time distance measurement with high accuracy. Adjustable detection range ensures adaptability for different vehicle sizes and operational requirements. Instant alerts for critical object proximity, reducing the chances of accidental collisions. Self-Diagnosis & Intelligent Operation: The system automatically performs self-diagnostics when activated, ensuring optimal performance before every operation. Intelligent alerting system differentiates between high-risk and low-risk objects, preventing false alarms. Advanced Digital Display System: The high-visibility in-cabin display provides real-time obstacle distance feedback to the driver. Minimal operator distraction, enabling faster and more effective decision-making.
Datasheet
| Detection Technology | 77GHz Millimeter-Wave Radar |
| Detection Range | Configurable up to 30m+ |
| Target Objects | Static & Moving Obstacles (Humans, Vehicles, Structures) |
| Detection Zones | Front & Rear (Adjustable / Fixed Width & Length) |
| Virtual Target Area Front | Width = Vehicle Width + 0.5m on Both Sides |
| Virtual Target Area Rear | Width = Vehicle Width + 0.5m on Both Sides |
| Front Sensor Detection Range | 30m to 40m Dynamic with Speed |
| Rear Sensor Detection Range | 12m Fixed |
| Audio-Visual Alerts | Smart Alerts with Left-Center-Right Indication and Auto-Cut System |
| Data Logging | Time & Location Stamp with GPS Integration |
| Self-Diagnosis | Yes (Automated on Startup) |
| Operating Voltage | 12V - 30V DC |
| Power Consumption | Low Power Consumption |
| Weather Resistance | Dustproof and Waterproof (IP66 Rated) |
| Installation | Plug-and-Play with Adjustable Mounting Brackets |
| Specification Part | 01 |
| Sensor Type | Microwave Radar / Sensor |
