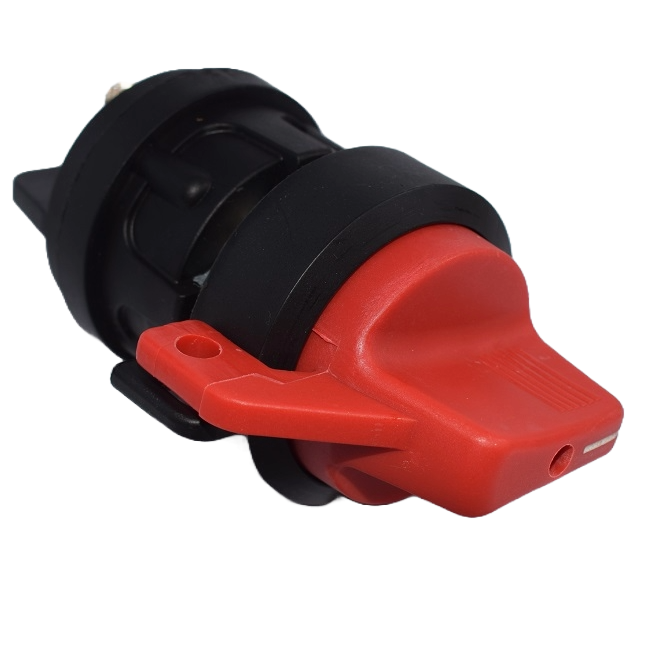

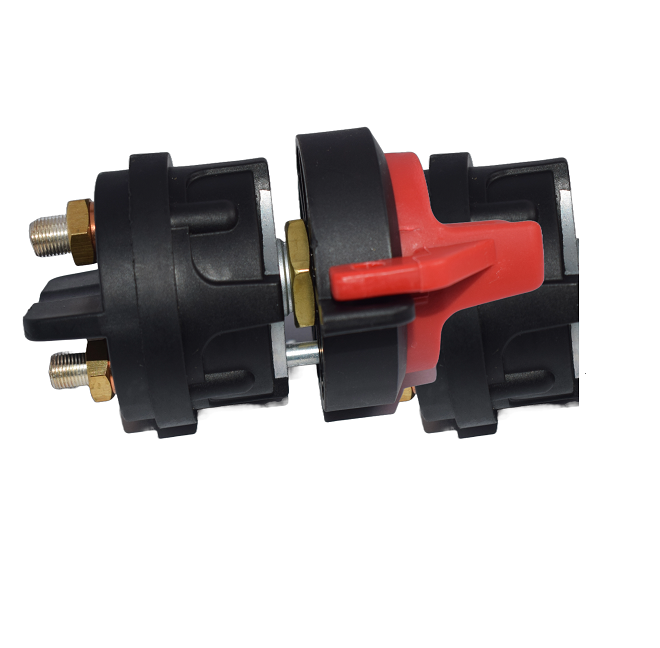

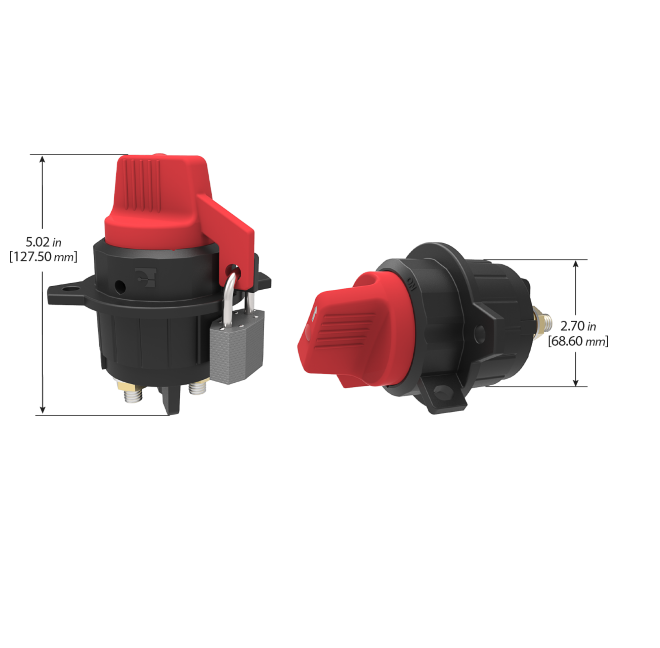

Battery Cut Off Switch
Lockout-tagout is a safety procedure to ensure that dangerous equipment is properly shut off and not started up again before maintenance or servicing work is completed. It requires hazardous power sources to be “isolated and rendered inoperative” before any repair procedure is started.
Engineered in Bangalore. Tested across 14 mining states. Backed by a 4-hour SLA service network.
Engineered for the toughest mining environments.
Lockout-Tagout frequently works with a lock or tag securing a switch in the Off position. A lock completely secures a switch, while a tag is a marker that alerts a user that the switch should not be activated. The lockout is the most secure option, since the padlock can only be removed by someone who has a key – usually the person who locked-out the switch in the first place. Workers servicing or maintaining equipment may be seriously injured or killed if hazardous energy is not properly controlled. Craft workers, electricians, machine operators, and laborers are among the millions of workers who service equipment routinely, and face the greatest risk of injury. Failure to control hazardous energy accounts for nearly 10 percent of the serious accidents in many industries.
Datasheet
| Part No. | BL1046 |
| Max Continuous Current | 300 Amps |
| Max Surge Current | 2,500 Amps (5 Seconds) |
| Environmental Protection Rating | IP68 |
| Water Resistant | Yes |
| Operating Temperature Range | -40°C to +80°C / -40°F to +176°F |
| Contact Terminals | Silver-Plated Copper |
| Contact Hardware | Nickel-Plated Brass |
| Additional Notes | Meets OSHA Lock-Out/Tag-Out Regulation 1910.147 |
| Available Stud Length | 0.95 Inch (Approx. 61/64 Inch) |
| Extension Handle/Lever | No |
| LED On/Off Indicator | No |
| Lock-Out Capability | Yes - Padlock (Not Included) |
| Max Tightening Torque | 11-13 ft. lbs. |
| Mounting Bracket Included | Yes |
| Stud Diameter | M10 |
| Voltage | 12V/24V and 36VDC |
