AUTO DIPPER SYSTEM
The Auto-Dipper System is an advanced electronic device designed to enhance road safety and driving comfort by automatically controlling vehicle headlight beams. The system seamlessly switches the headlights to dipper mode (low beam) when it detects the sharp high-beam light from an approaching vehicle. Once the vehicle passes, the headlights are restored to the original high- beam position within a few seconds, eliminating the need for manual intervention.
Engineered in Bangalore. Tested across 14 mining states. Backed by a 4-hour SLA service network.
Engineered for the toughest mining environments.

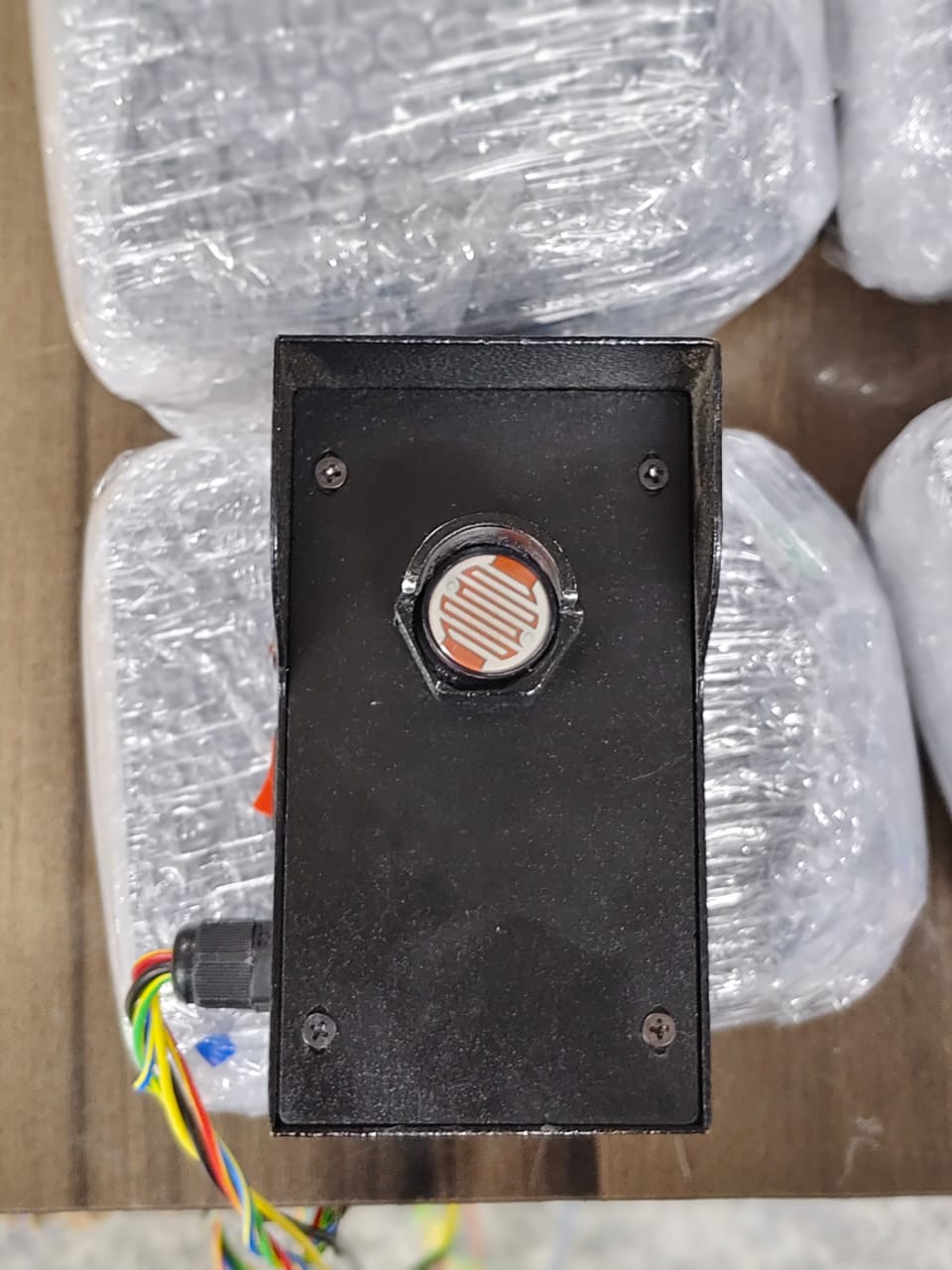

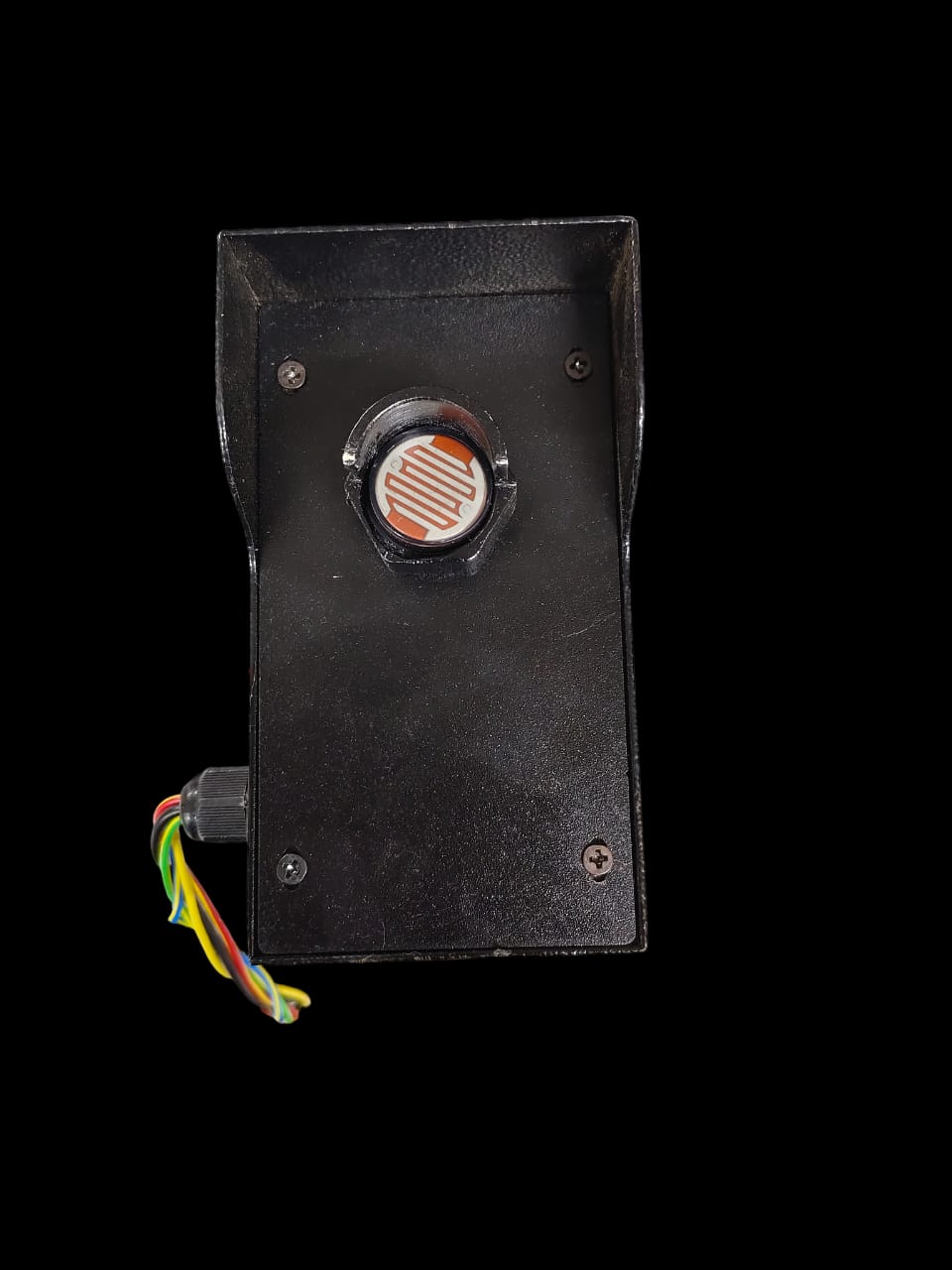

Ease of Installation: Automatic Operation: Adjustable Sensitivity: Thesystem allowsfor light sensitivity adjustment, enabling users to set the operational distance up to 150 meters based on road and visibility conditions. Consistsof a sensor unit anda control unit. The sensor detects the high beam light from oncoming vehicles. The control unit processes the signal and switches the headlamp from high beam to low beam. Once the vehicle has passed, the headlamp beam automatically restores to high beam within 2 seconds. Lightweightandeasy toinstallwithout modifying or disturbing the vehicle’s existing manual headlight control arrangement.
Datasheet
| Color | Black |
| Sensitivity Range | Adjustable up to 150 Meters |
| Function | Automatic Dipping and Restoring of Headlight Beams |
| Operating Voltage | 24V DC (Optional 12V DC Available Upon Request) |
| Timer | Light Beam Restored Within 2 Seconds |
| Current Capacity | 30 Amp for Headlamp Operation |
| Protection | Shock-Resistant, Vibration-Resistant, and Fire-Safe |
