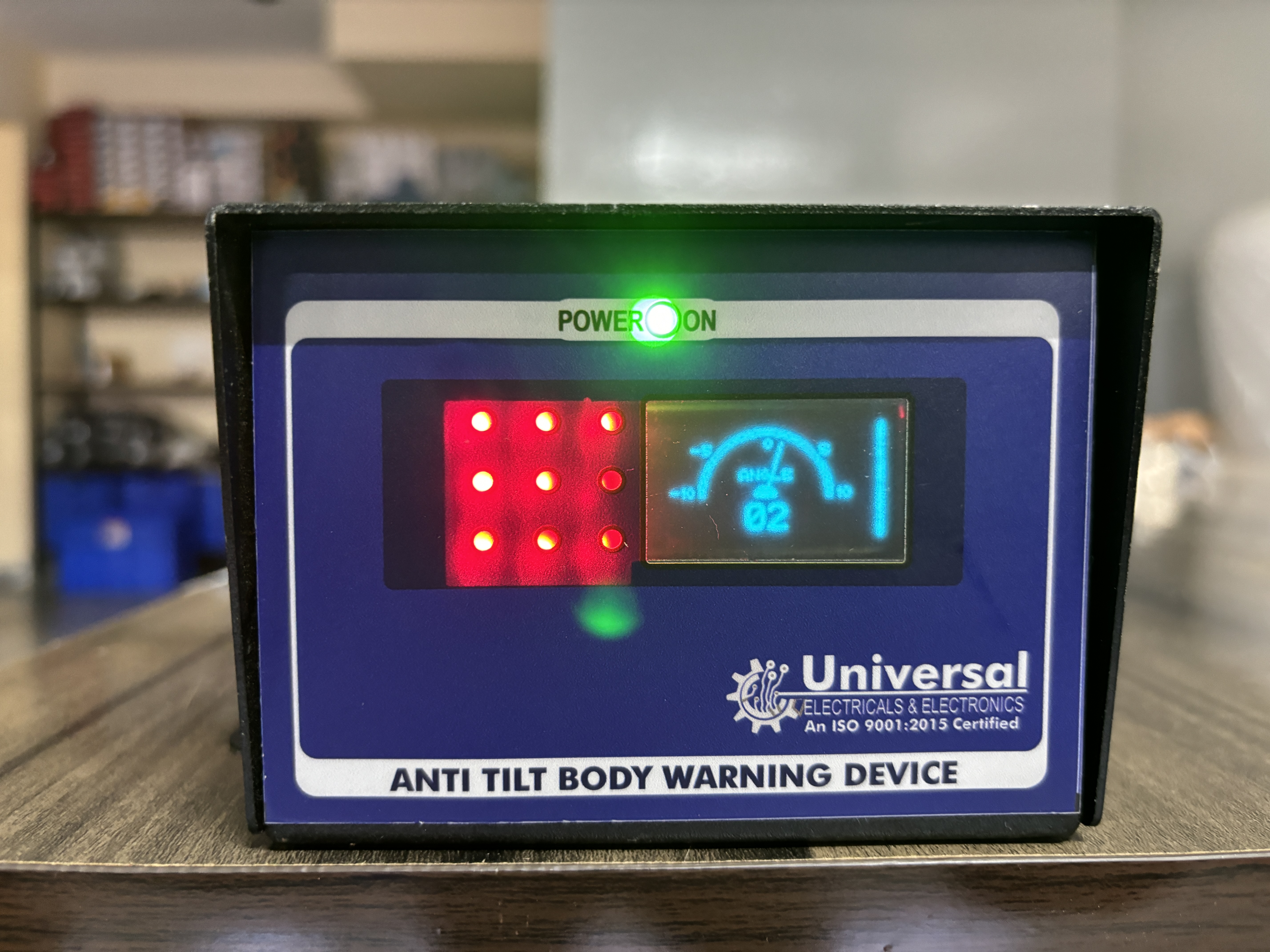

ANTI_TILT Tilt Warning device (Portable anti-tilt safety device with movable magnetic base for easy shifting and secure positioning)
The Anti-Tilt Warning Device is an advanced safety solution designed for heavy-duty trucks and dumper vehicles operating in challenging and uneven terrains. Equipped with a portable magnetic base for flexible installation, the system continuously monitors vehicle tilt angles in real time and provides instant audio-visual warnings to the operator. This helps minimize the risk of vehicle overturning and enhances operational safety during loading, unloading, and transportation activities
Engineered in Bangalore. Tested across 14 mining states. Backed by a 4-hour SLA service network.
Engineered for the toughest mining environments.
✅ Tilt Monitoring Range: ±90° Warning Trigger Point: ±5° from horizontal Warning System: (1)Red LED blinking Array (2)Buzzer beep (continuous). Display:“1.3inch”OLED screen Real-time tilt angle display PowerSource:Rechargeable battery (Internal) Input: 15V Charger (included) Mounting: Strong neodymium magnets for quick attachment to iron surfaces Enclosure: Rugged iron box for durability and protection
Datasheet
| Tilt Range | ±90 Degrees (Pitch/Roll) |
| Warning Trigger | > ±5 Degrees |
| Battery Voltage | 12V Rechargeable Battery |
| Charging Input | 15V DC |
| Display Type | OLED 0.96 Inch |
| Mounting | Magnetic Base |
| Casing | Iron Box (Powder Coated) |
| Alerts | LED Blinking + Buzzer Sound |
