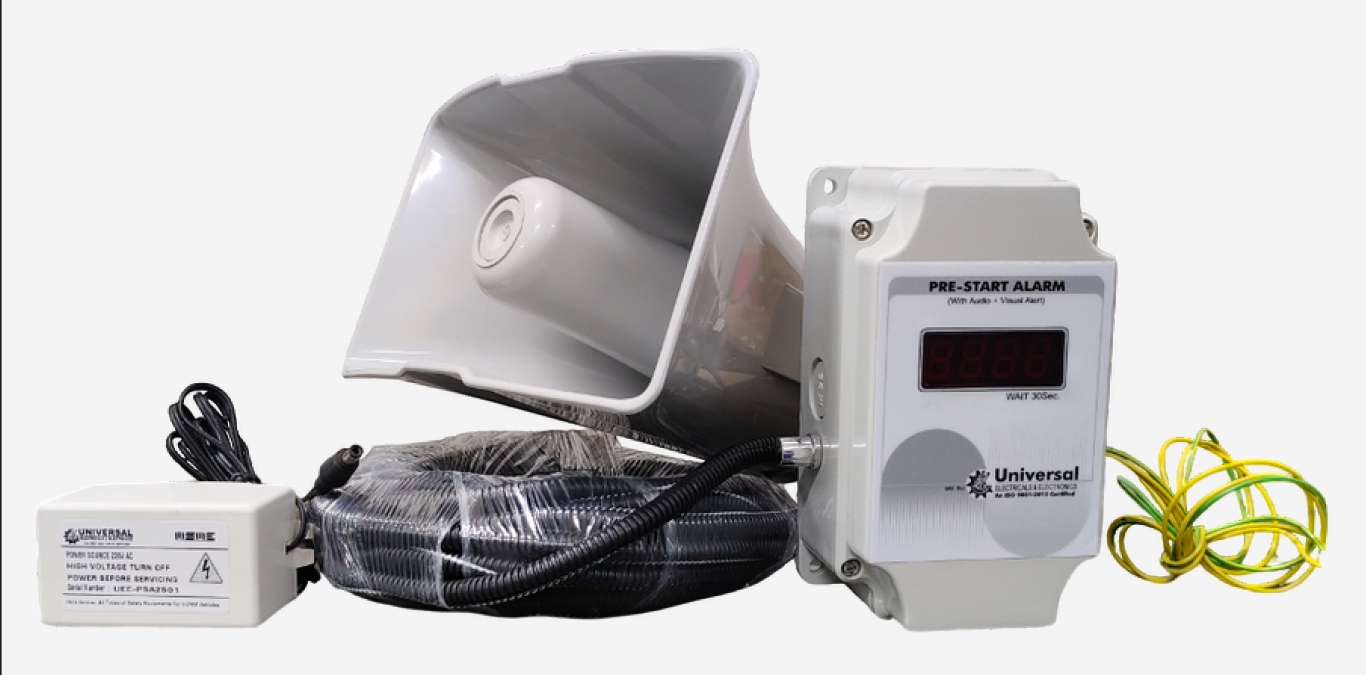

PRE-START ALARM
The Pre-Start Alarm System is a vital safety device designed to protect workers by providing an audible warning before a conveyor belt begins operation. This system is connected to a 230V AC power supply and automatically activates when the start switch is turned ON.
Engineered in Bangalore. Tested across 14 mining states. Backed by a 4-hour SLA service network.
Engineered for the toughest mining environments.
Once activated, the system triggers a 30-second audio alarm through a high-power 30W speaker, delivering a clear warning message in Hindi to alert workers to stay away from the conveyor belt. This ensures ample time for personnel to vacate the area, reducing the risk of accidents or injuries. After the 30-second duration, the alarm automatically turns OFF, marking the end of the warning period. Designed for simplicity and reliability, this system is ideal for industrial environments where worker safety is a priority.
Datasheet
| Input Voltage | Powered via AC Adaptor from 230VAC Input |
| Speaker Output | 30W Audio Output Capacity |
| Timer Output | 30-Second Timed Control Output |
| Control Features | ON/OFF Switch with Pre-Programmed 30-Second Audio Alarm Timer |
| Indicator | LED Status Indicator for Power ON/OFF |
| Connectivity | DC Barrel Power Input with Secure Screw Terminals for Speaker Connection |
| Operating Temperature | -10°C to +50°C |
| Enclosure | High-Durability ABS or Metal Body |
| Protection | IP54-Rated Dust and Moisture Resistance |
| Mounting | Wall-Mountable with Pre-Drilled Installation Holes |
| Weight | Approx. 500g |
| Application | Designed for Reliable Industrial Operation, Safety, and Ease of Use |
